Project Description:

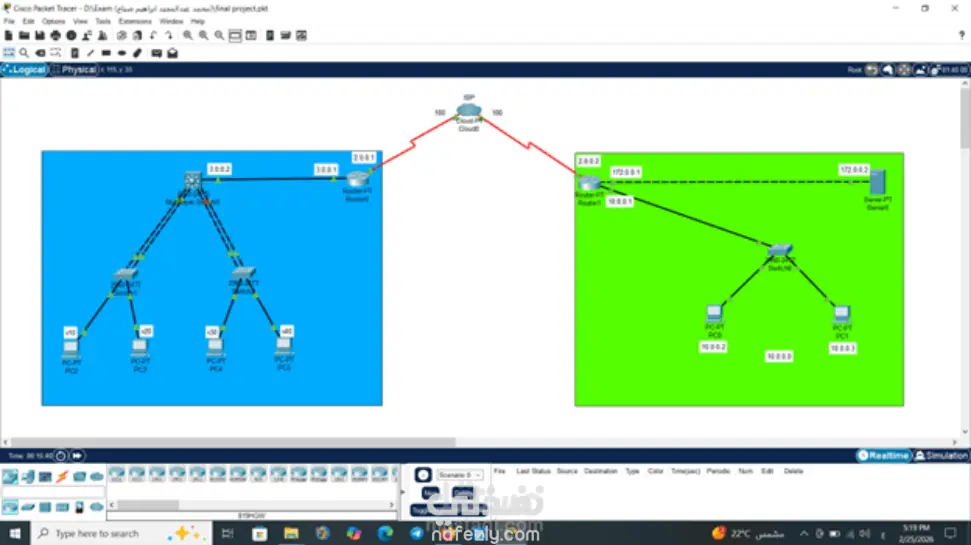

A comprehensive network design developed using Cisco Packet Tracer, simulating a multi-branch corporate environment connected via an ISP cloud. The project demonstrates advanced networking concepts, including hierarchical design, security through segmentation, and server management.
Key Technical Features:
VLAN Implementation: The network is segmented into multiple VLANs (VLAN 10, 20, 30, 40) to enhance security and reduce broadcast traffic.
Inter-VLAN Routing: Utilized a Multilayer Switch (Layer 3) to facilitate high-speed communication between different departments.
ISP Connectivity: Simulated a Wide Area Network (WAN) connection using a Cloud-PT (ISP) to link remote branches via serial interfaces.
Server Configuration: Deployment of a dedicated server within the green zone to handle centralized services and resources.
IP Addressing Scheme: Structured IP addressing for PCs, switches, and routers to ensure seamless end-to-end connectivity.
Redundancy & Reliability: Designed with a logical topology that focuses on network stability and efficient data flow
