Enterprise Network Simulation Project

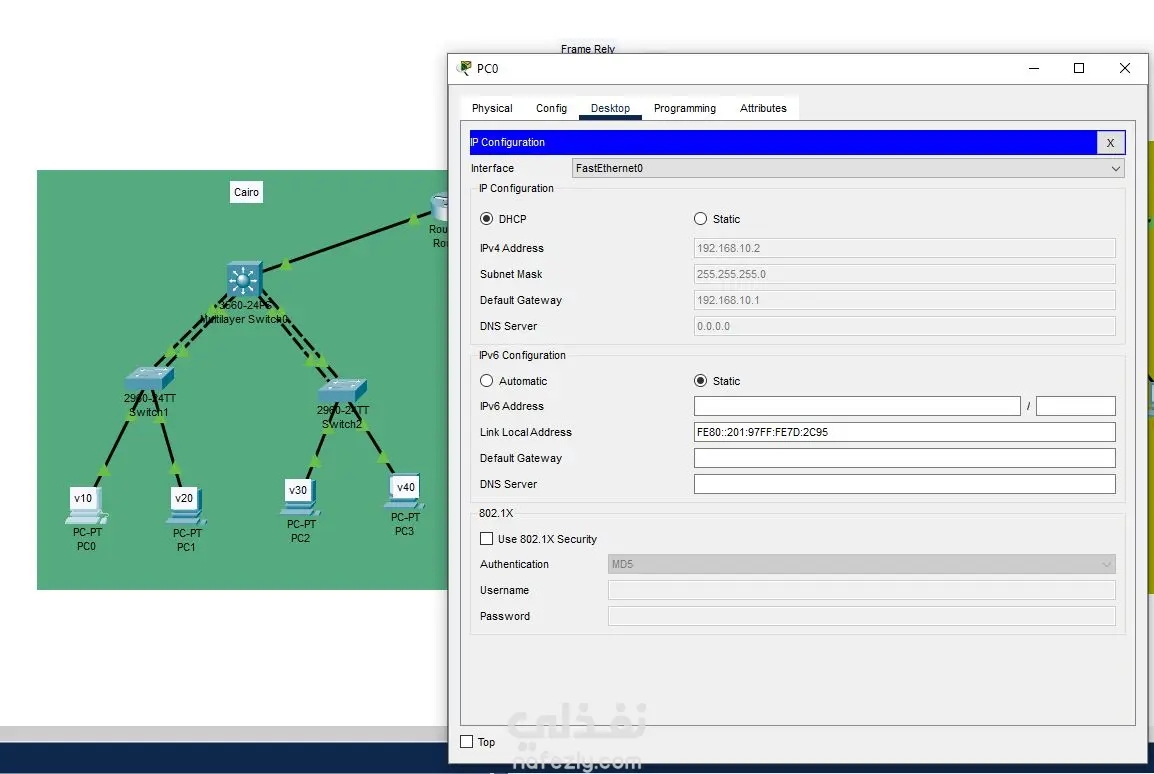

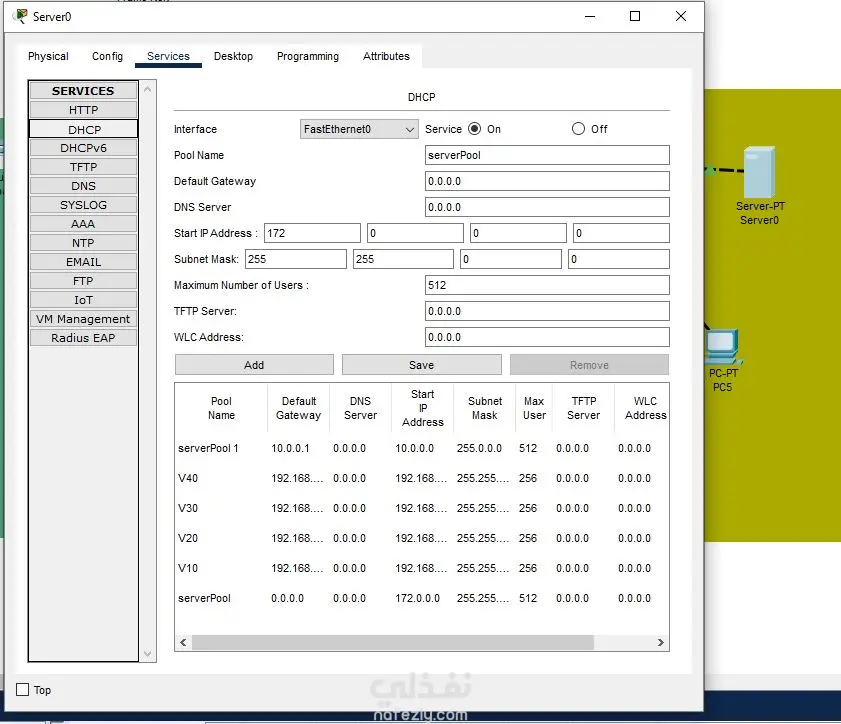

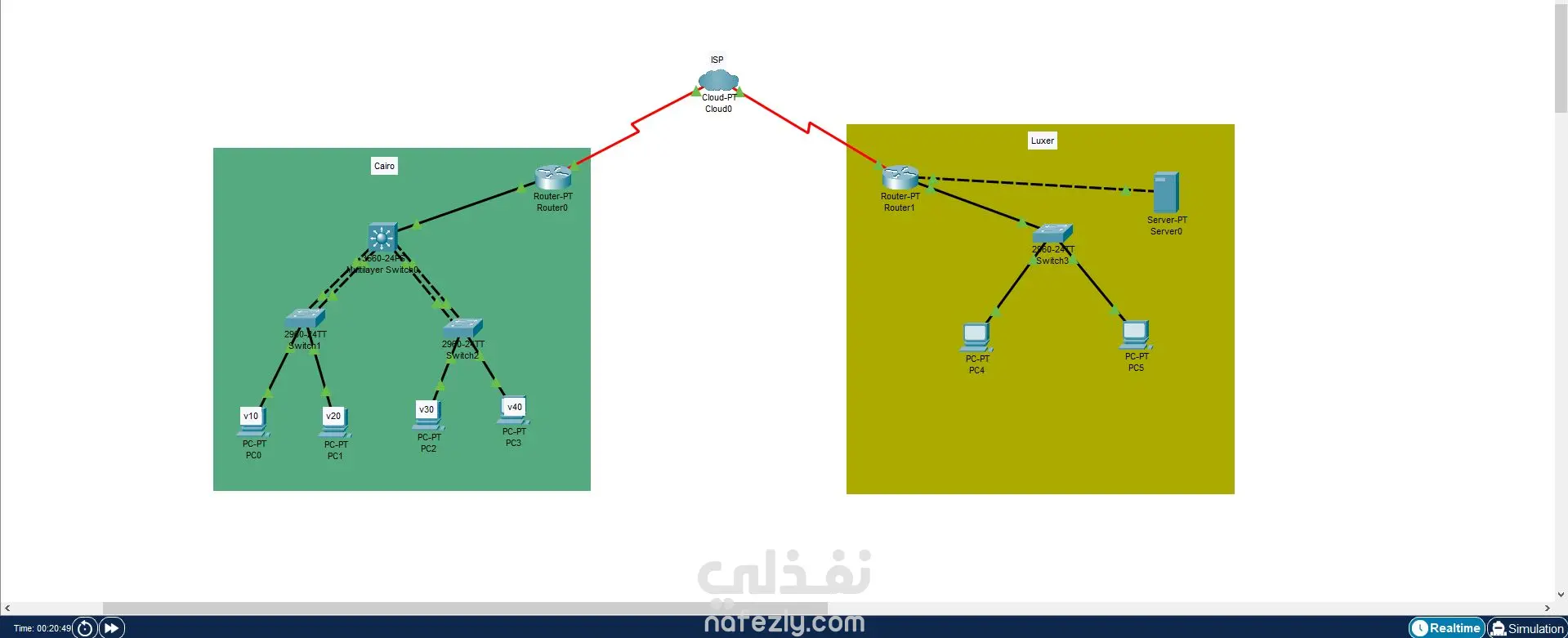

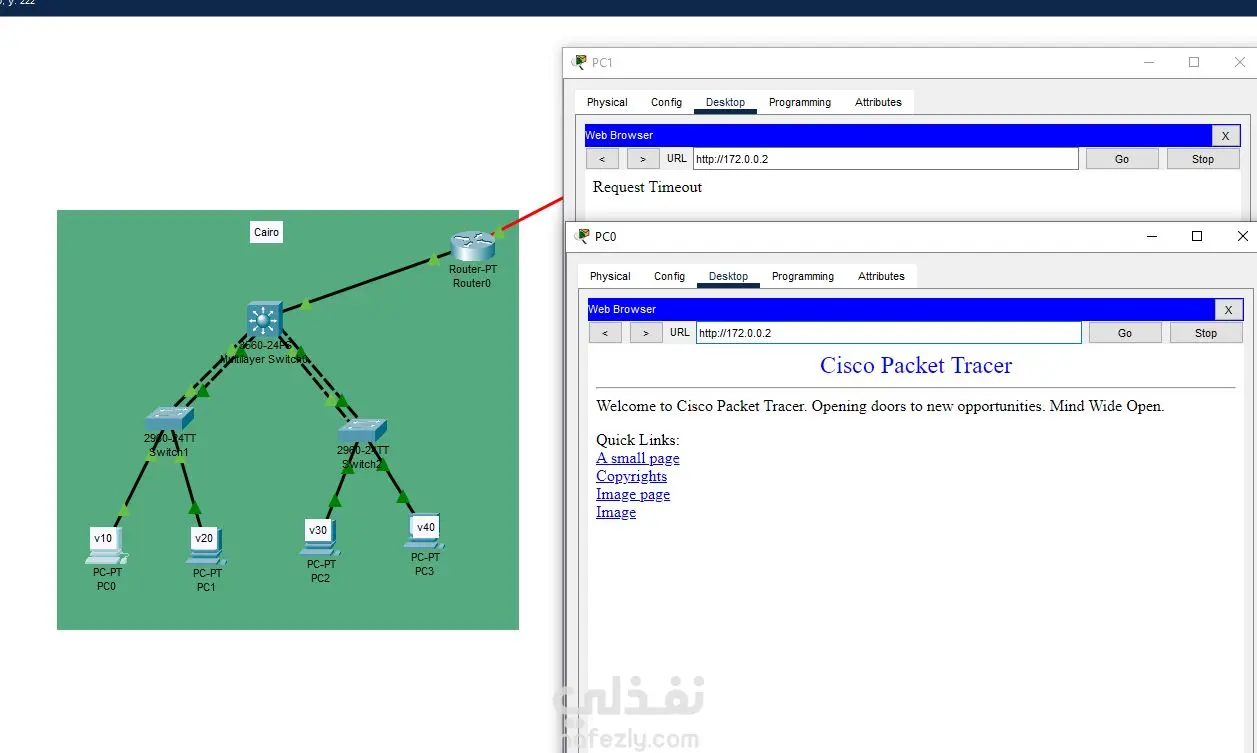

The network connects two branches — Cairo (HQ) and Luxor (Branch) — over a simulated cloud infrastructure using EIGRP for dynamic routing. Each site includes structured VLANs, DHCP services, ACLs for access control, and inter-VLAN routing. Implemented Features : - EIGRP Routing between routers - VLAN segmentation (v10, v20, v30, v40) across switches - Centralized DHCP hosted on a server in the Luxor branch - Inter-VLAN Routing using a multilayer switch at Cairo HQ - Access Control Lists (ACLs) to restrict communication between VLANs - Web Server Hosting in Luxor (accessible only to specific VLANs) Security Rules: - Users in VLAN 10 are denied access to VLAN 40 - VLAN 20 is restricted from accessing the internal web server in Luxor
