تصميم دائرة تغذية لمحرك تيار مستمر بدون فرش بقدرة 1.5KW من الألف الى الياء وتصميم دائرة PCB الخاصة به باستخدام برنامج Altium Designer وهي دائرة مكونة من 6-layers. يحتوي المشروع على الكثير من بروتوكولات التى تعمل على سرعات عالية.

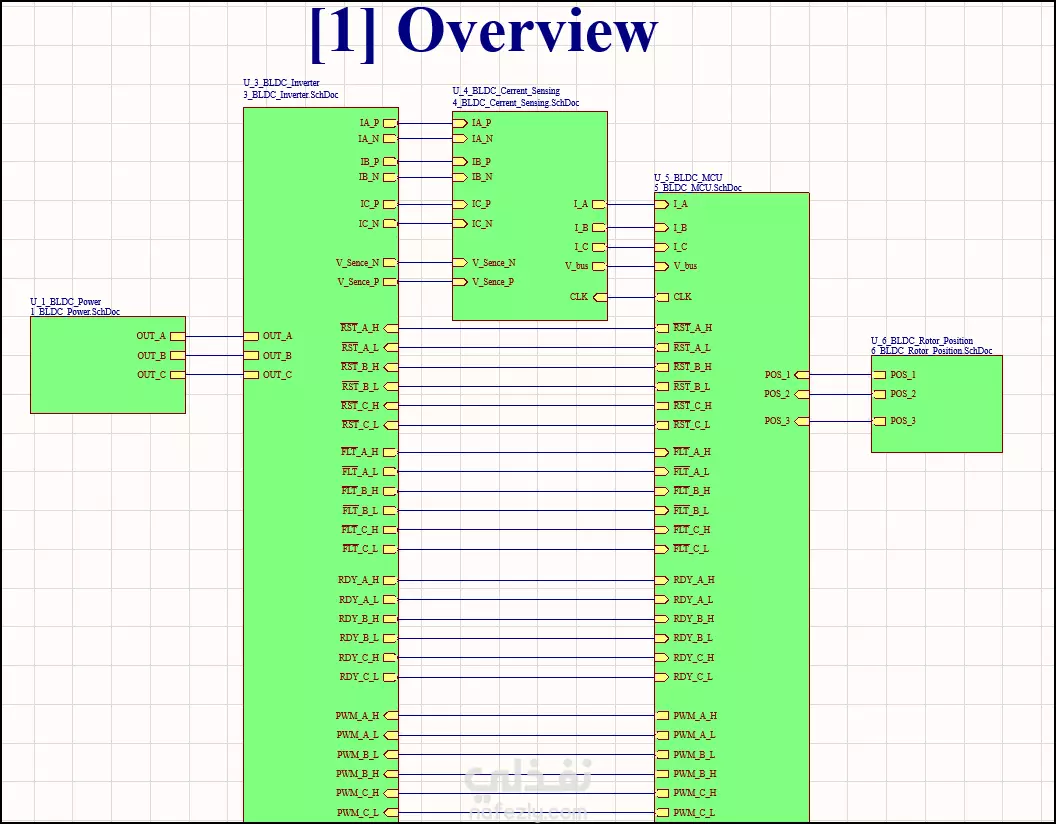

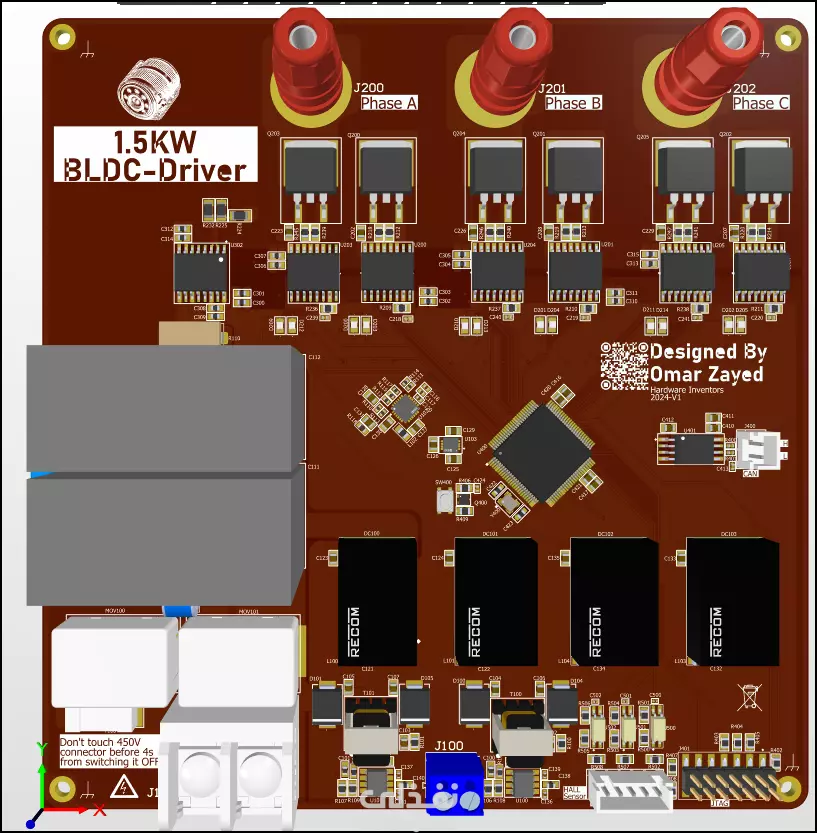

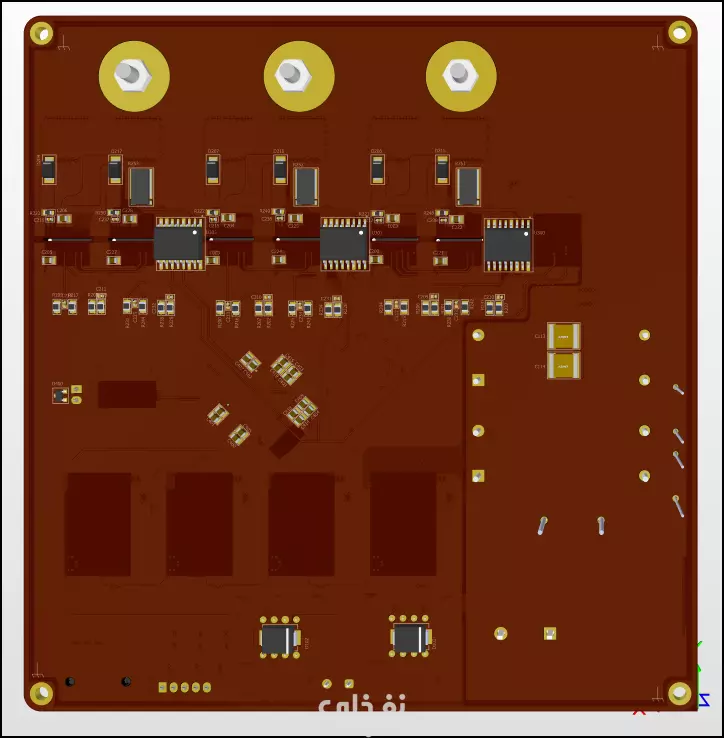

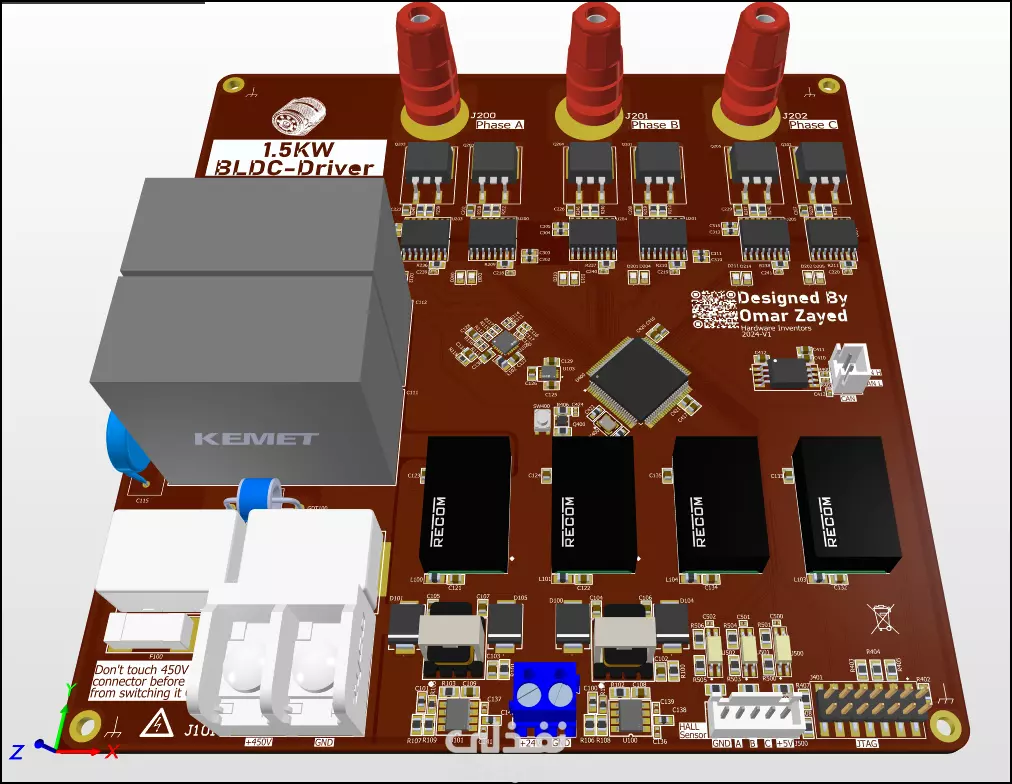

The project is rated at 1.5 KW, 450V bus rail with overvoltage and short-circuit protection. It drives a 3-phase inverter based on power MOSFETs, which are controlled by an onboard MCU F280039PZRQ1 from Texas Instruments, with a 20 MHz crystal the MCU supports CAN protocol and JTAG interface. The board also contains four isolated DC-DC converters driven from two flyback converters to provide the required voltage levels for different modules (Delta-Sigma Modulators, CAN transceiver, HALL-Sensors, and Isolated DC-DC converters to supply power for the gate drives).
