Belt Roller Support Assembly
تفاصيل العمل

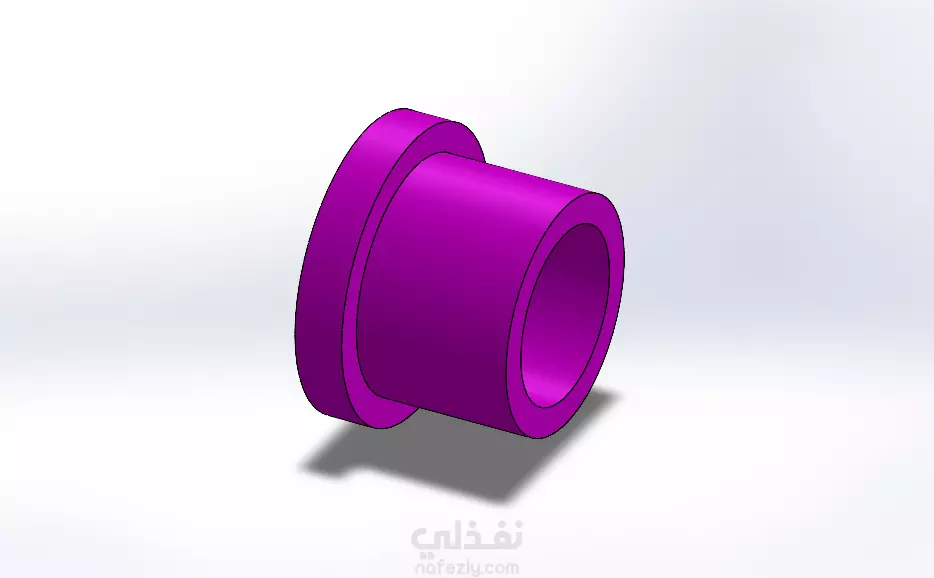

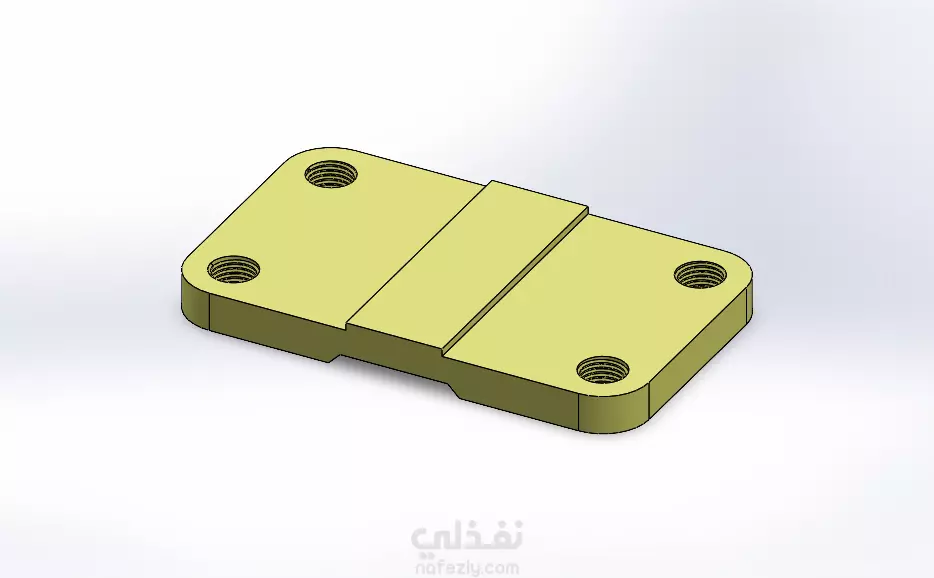

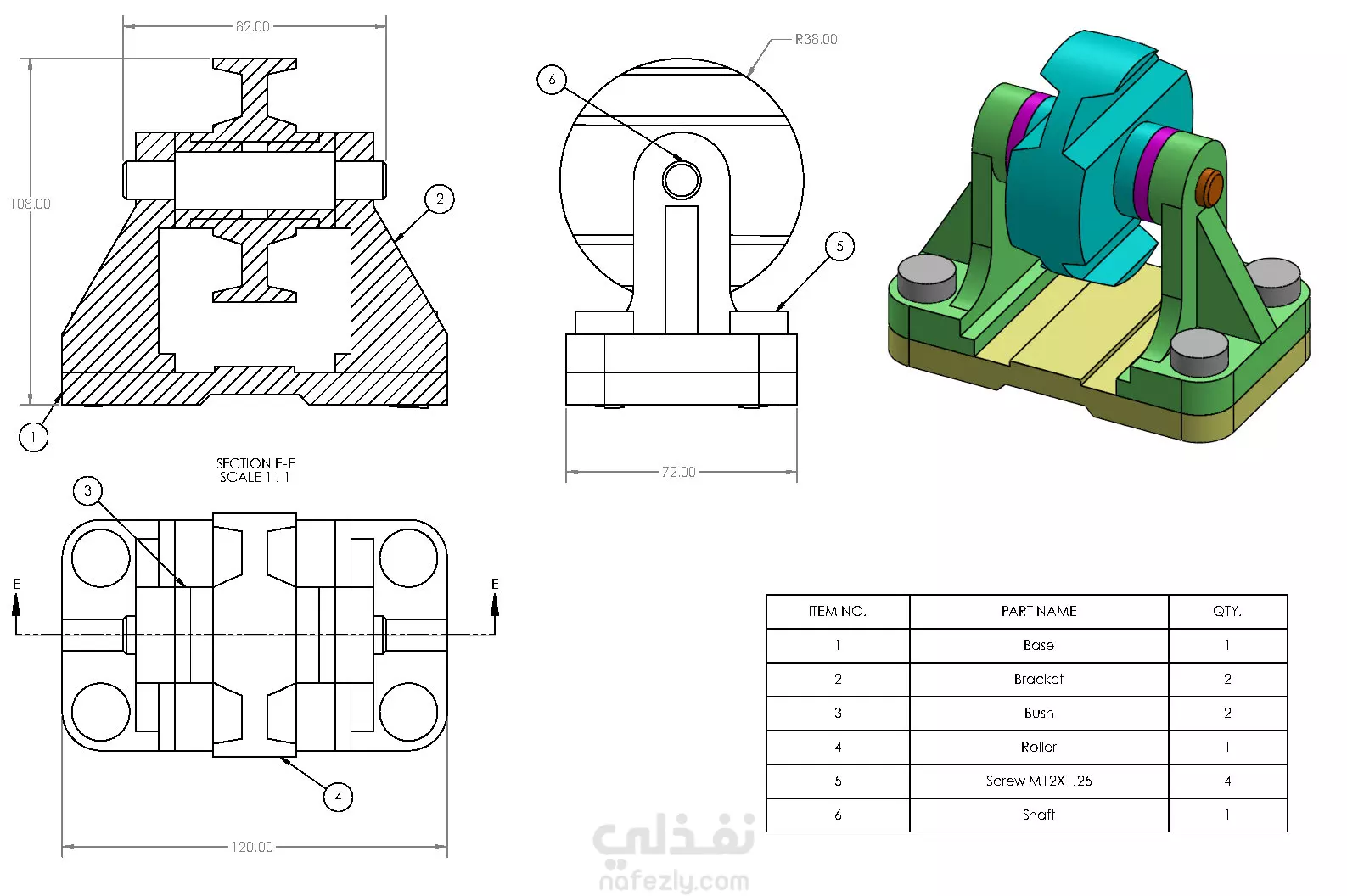

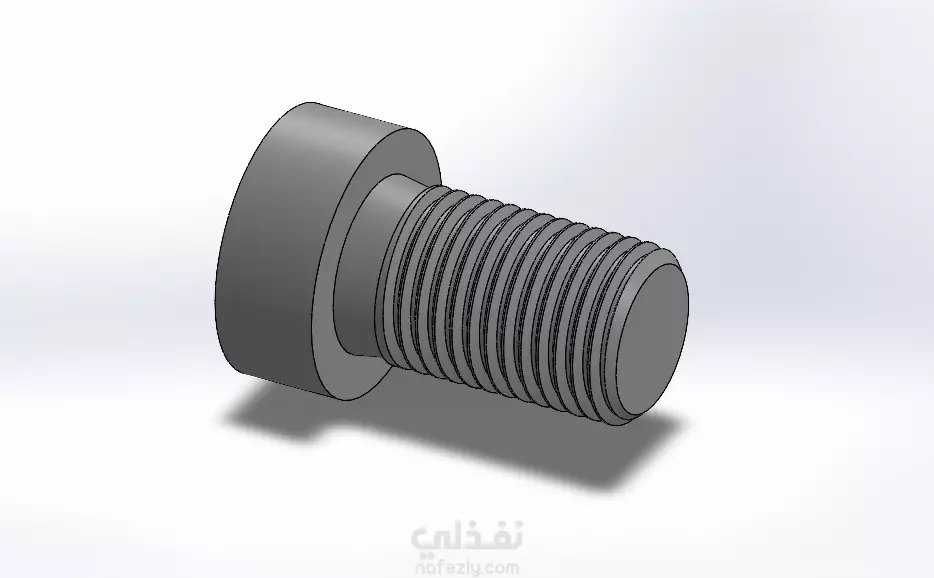

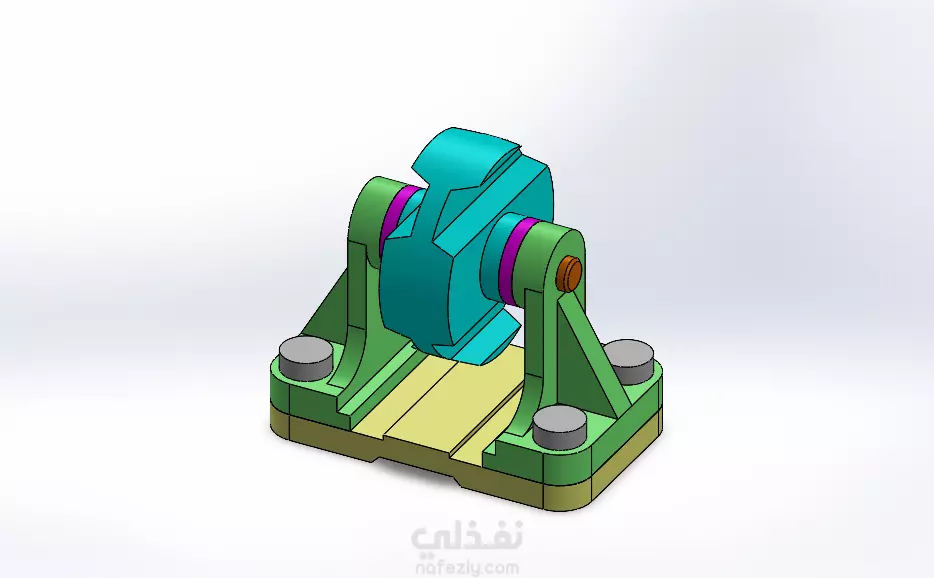

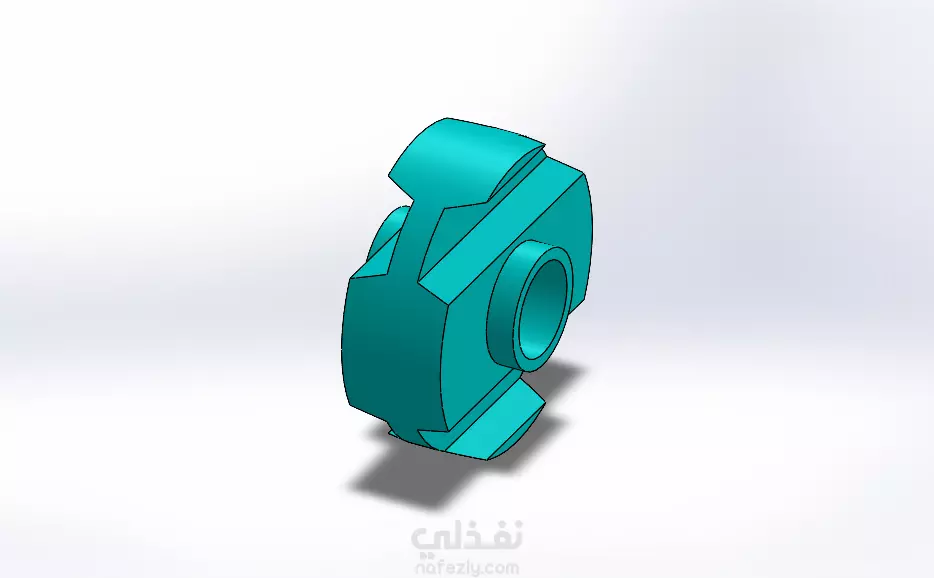

This is a Belt Roller Support Assembly designed to provide stable support and smooth guidance for conveyor belts under operational loads. Assembly Parts List: 1. Base : Acts as the foundation of the entire system 2. Bracket (x2) : Supports the roller from both sides 3. Bush (x2) : Ensures smooth rotation and reduces wear 4. Roller : Central rotating part that guides the belt 5. Screw M12×1.25 (x4) : Fasteners used to secure the structure 6. Shaft : Holds the roller in place and enables rotation The project also includes: ● Section views ● Detailed dimensions ● Full bill of materials ● Assembled 3D and 2D views
